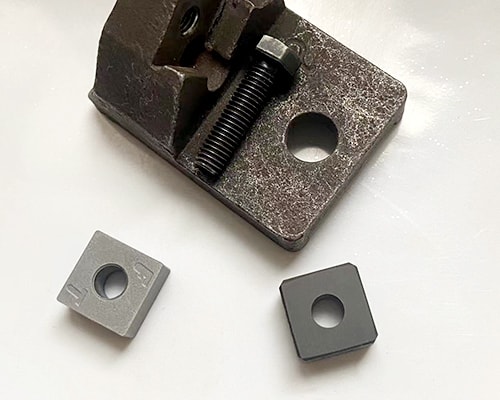

PCD Insert
PCD (Polycrystalline Diamond) Inserts with high abrasive resistance, high processing precision, good thermal conductivity and long service life, can greatly improve materials machining efficiency. Such as nonferrous metal, tungsten carbide, ceramic, nonmetal and composite materials.
Application
Nonferrous metallic materials (ASluminium, MMC, Tungsten Carbide, Copper alloy, etc,.)
Nonmetallic materials (Ceramic, wood-working, Fiber glass, Plastic, etc,.)

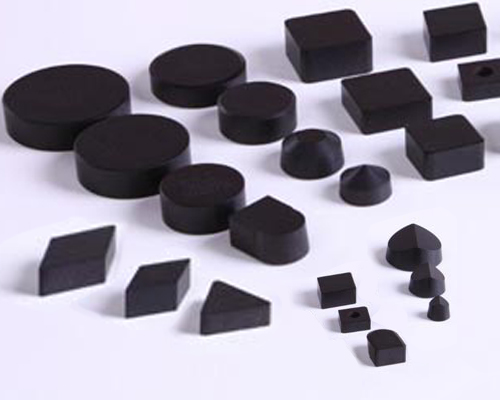

PCBN Insert
PCBN (Polycrystalline Cubic Boron Nitride) Insert is designed to machine extremely hard materials with high metal-removal rates, high abrasive resistance and impact resistance. Specially for ferrous materials, high-hardness alloy cast iron, gray cast iron, nodular cast iron, ferro chrome and other materials.
Application
Ferrous metallic materials such as hardness steels, cast irons and supper alloys, powder metal, etc,.
Parameter:

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
SNMN 120408	12.7	12.7	4.76	0.8	●	●	●		●	●
SNMN 12T612	12.7	12.7	6.8	1.2	●	●	●		●	●
SNMN 150720	15.875	15.875	7.94	2	●	●	●		●	●
SNMN 201020	20	20	10	2	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
RCMN 12T600	12.7	12.7	6.8	0	●	●	●		●	●
RCMN 150700	15.875	15.875	7.94	0	●	●	●		●	●
RCMN 190700	19.05	19.05	7.94	0	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
RCMX 090700	9.525	9.525	7.94	1	●	●	●		●	●
RCMX 120700	12.7	12.7	7.94	2	●	●	●		●	●
RCMX 151000	15.875	15.875	10	2	●	●	●		●	●
RCMX 191000	19.05	19.05	10	2	●	●	●		●	●
RCMX 201200	20	20	12	2	●	●	●		●	●
RCMX 251200	25.4	25.4	12	2	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
CNMN 120404	12.9	12.7	4.76	0.4	●	●	●		●	●
CNMN 12T608	12.9	12.7	6.8	0.8	●	●	●		●	●
RCMN 120712	12.9	12.7	7.94	1.2	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
RNMN 251000	25.4	25.4	10	0	●	●	●		●	●
RNMN 201000	20	20	10	0	●	●	●		●	●
RNMN 200700	20	20	7.94	0	●	●	●		●	●
RNMN 150700	15.875	15.875	7.94	0	●	●	●		●	●
RNMN 12T600	12.7	12.7	6.8	0	●	●	●		●	●
RNMN 120400	12.7	12.7	4.76	0	●	●	●		●	●
RNMN 090400	9.525	9.525	4.76	0	●	●	●		●	●
RNMN 080400	8.5	8.5	4.76	0	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
WNMN 060304T02020	6.5	9.525	3.18	0.4	●	●	●		●	●
WNMN 080408T02020	8.72	12.7	4.76	0.8	●	●	●		●	●
WNMN 080412T02020	8.72	12.7	4.76	1.2	●	●	●		●	●

Type	Dimensions				PCBN
ISO	R	b	L	S	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
STB10K1	4.6	9.2	17	8	●	●	●		●	●
BL 12K1-B	5.55	11.1	17	8	●	●	●		●	●
BL 14K1-B	6.5	13	17	8	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
RCMX090700Y	9.525	9.525	7.94	1	●	●	●		●	●
RCMX120700Y	12.7	12.7	7.94	1.2	●	●	●		●	●
RCMX150700Y	15.875	15.875	10	1.2	●	●	●		●	●
RCMX190700Y	19.05	19.05	10	1.5	●	●	●		●	●
RCMX200700Y	20	20	10	1.5	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
DNUN110404	11	9.525	4.76	0.4	●	●	●		●	●
DNUN11T608	11	9.525	6.8	0.8	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
RNEN090300	9.525	9.525	3.18	0	●	●	●		●	●
RNEN090400	9.525	9.525	4.76	0	●	●	●		●	●
RNEN120700	12.76	12.76	7.94	0	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
SNEN0903ENS	9.525	9.525	3.18	0.8	●	●	●		●	●
SNEN0904ENS	9.525	9.525	4.76	0.8	●	●	●		●	●
SNEN1207ENS	12.7	12.7	7.94	1.2	●	●	●		●	●
SNEN0904XGR	9.525	9.525	4.76	0.8	●	●	●		●	●

Type	Dimensions				PCBN
ISO	L	￠i.c	s	r	3BD3500	3BD7000	3BD7500	3BD7600	3BD9000	3BD9500	3BD9600
SNEN19T6ENS	19.05	19.05	6.8	1.6	●	●	●		●	●
SNEN1207XGR	12.7	12.7	7.94	1.2	●	●	●		●	●
