ND wire drawing die
  • ND wire drawing die
  • single crystal synthetic diamond wire drawing dies
  • Wire Drawing DIE

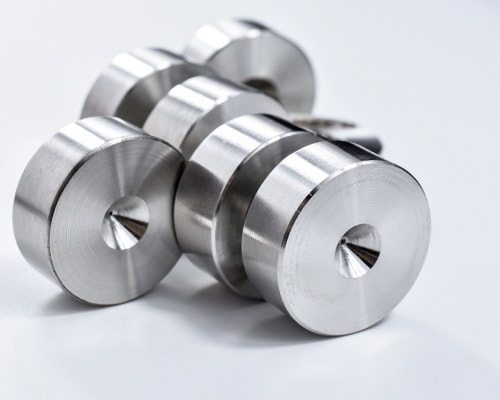

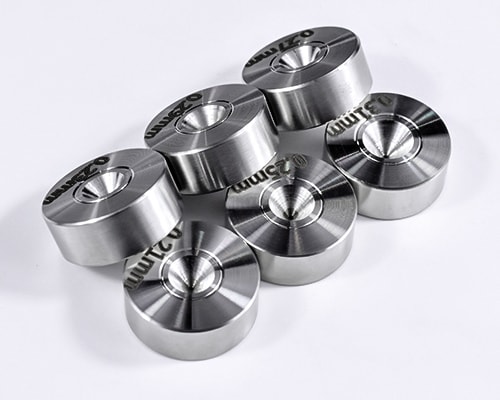

ND wire drawing die

  • Function Wire Drawing
  • Application Iron, Steel, Silver, Gold
  • Certificate ISO9001:2000

  • Product details
  • parameter

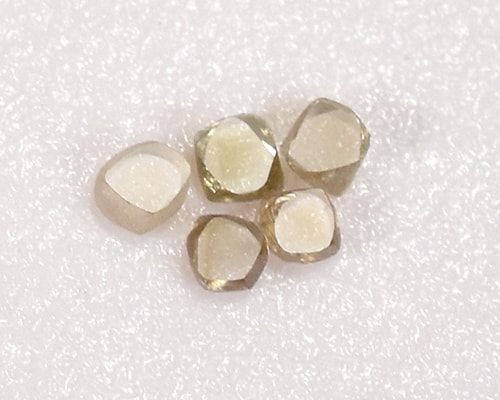

Natural diamond drawing die (ND wire drawing dies) usually selected diamond drawing die raw material diamond for LA type diamond. This type of diamond contains a certain amount of nitrogen impurities (0.1% orders of magnitude), and these nitrogen impurities are assembled into a small cluster.



It also contains small pieces (associated with nitrogen impurities), and the exact structure of these small pieces is unknown. We produce natural diamond wire drawing dies from high-quality natural diamond materials, after strict selection, processing. High surface finish, good wear resistance is its main advantage. Suitable for the drawing of various types of wire with high surface quality requirements.

Hole Size Range: 0.015mm-2.00mm

Recommended to do finished dies (outlet mold), micro-wire mold, mould which requires the wire surface of a particularly bright

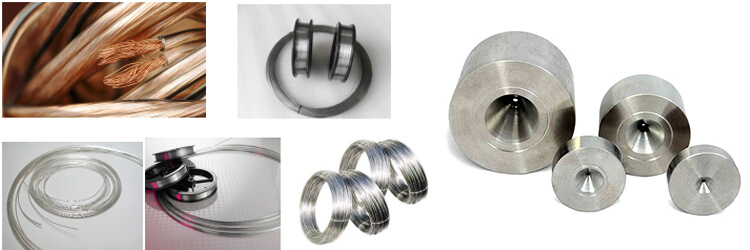

Application:
platinum rhodium wire, gold filament, silver wire, copper, aluminum, molybdenum, nickel, tin plated copper, tungsten, copper aluminum alloy and other non-ferrous metal silk materials.




TYPE DIE SIZE (mm) STANDARD TOLERANCE (um) STANDARD CASES
A B
ND DIES <0.04 0.5 25 5
0.04-0.07 0.5 25 5
0.08-0.19 1 25 8
0.2-0.39 1 25 8
0.4-0.59 1 25 10
0.60-0.10 2 25 10
>1.0 3 30 15
PCD DIES D6 0.10-0.15 25 7
D12 0.10-0.80 30 15
D15 0.50-1.50 30 15
D18 1.00-2.30 30 15
D21 1.60-3.40 30 15
D24 2.60-4.60 42 20
D27 3.00-5.80 55 24
D30 4.00-11.20 55 24
D33 6.00-12.50 60 28
D36 8.00-13.50 70 35
D 12.00-22.00 70 35
D 20.00-32.00 85 40
