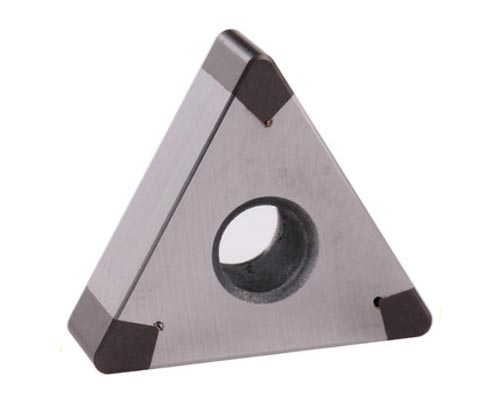

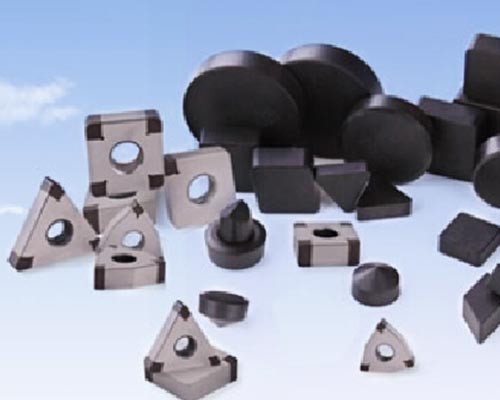

PCD Insert
PCD (Polycrystalline Diamond) Inserts with high abrasive resistance, high processing precision, good thermal conductivity and long service life, can greatly improve materials machining efficiency. Such as nonferrous metal, tungsten carbide, ceramic, nonmetal and composite materials.
Application
Nonferrous metallic materials (ASluminium, MMC, Tungsten Carbide, Copper alloy, etc,.)
Nonmetallic materials (Ceramic, wood-working, Fiber glass, Plastic, etc,.)

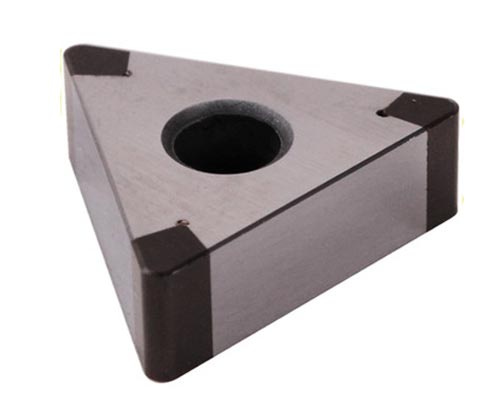

PCBN Insert
PCBN (Polycrystalline Cubic Boron Nitride) Insert is designed to machine extremely hard materials with high metal-removal rates, high abrasive resistance and impact resistance. Specially for ferrous materials, high-hardness alloy cast iron, gray cast iron, nodular cast iron, ferro chrome and other materials.
Application
Ferrous metallic materials such as hardness steels, cast irons and supper alloys, powder metal, etc,.
Parameter:

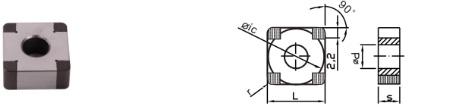

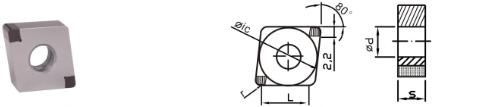

Type	Dimensions					PCBN
	L	￠i.c	s	r	￠d	3BD7500	3BD9600
SNGA120404 S01020-8S	12.7	12.7	4.76	0.4	5.16
SNGA120408 S01020-8S	12.7	12.7	4.76	0.8	5.16	●	●
SNGA120412 S01020-8S	12.7	12.7	4.76	1.2	5.16

Type	Dimensions					PCBN
	L	￠i.c	s	r	￠d	3BD7500	3BD9600
CNGA120404 S01020-4S	12.9	12.7	4.76	0.4	5.16
CNGA120408 S01020-4S	12.9	12.7	4.76	0.8	5.16	●	●
CNGA120412 S01020-4S	12.9	12.7	4.76	1.2	5.16

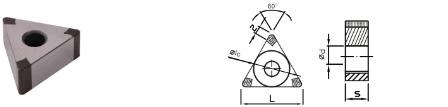

Type	Dimensions					PCBN
	L	￠i.c	s	r	￠d	3BD7500	3BD9600
TNGA110304 S01020-6S	11	6.35	3.18	0.4	2.26
TNGA110308 S01020-6S	11	6.35	3.18	0.8	2.26	●	●
TNGA110312 S01020-6S	11	6.35	3.18	1.2	2.26

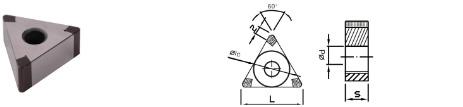

Type	Dimensions					PCBN
	L	￠i.c	s	r	￠d	3BD7500	3BD9600
TNGA160404 S01020-6S	16.5	9.525	4.76	0.4	3.81
TNGA160408 S01020-6S	16.5	9.525	4.76	0.8	3.81	●	●
TNGA160412 S01020-6S	16.5	9.525	4.76	1.2	3.81

Type	Dimensions					PCBN
	L	￠i.c	s	r	￠d	3BD7500	3BD9600
TNGA220404 S01020-6S	22	12.7	4.76	0.4	5.16
TNGA220408 S01020-6S	22	12.7	4.76	0.8	5.16	●	●
TNGA220408 S01020-6S	22	12.7	4.76	1.2	5.16

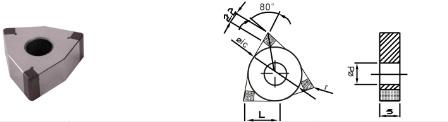

Type	Dimensions					PCBN
	L	￠i.c	s	r	￠d	3BD7500	3BD9600
WNGA080404 S01020-6S	8.7	12.7	4.76	0.4	5.16
WNGA080408 S01020-6S	8.7	12.7	4.76	0.8	5.16	●	●
WNGA080412 S01020-6S	8.7	12.7	4.76	1.2	5.16

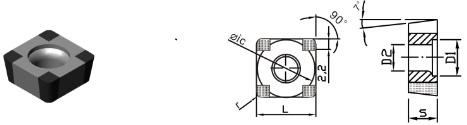

Type	Dimensions						PCBN
	L	￠i.c	s	r	D1	D2	3BD7500	3BD9600
CCGW09T304 S01020-2S	9.67	9.525	3.97	0.4	4.4	6
CCGW09T308 S01020-2S	9.67	9.525	3.97	0.8	4.4	6	●	●
CCGW09T312 S01020-2S	9.67	9.525	3.97	1.2	4.4	6

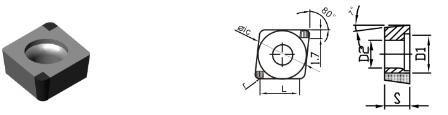

Type	Dimensions						PCBN
	L	￠i.c	s	r	D1	D2	3BD7500	3BD9600
SCGW09T304 S01020-4S	9.67	9.525	3.97	0.4	4.4	6
SCGW09T308 S01020-4S	9.67	9.525	3.97	0.8	4.4	6	●	●
SCGW09T312 S01020-4S	9.67	9.525	3.97	1.2	4.4	6

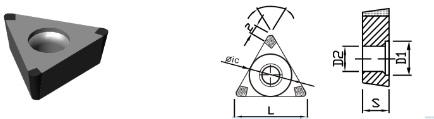

Type	Dimensions						PCBN
	L	￠i.c	s	r	D1	D2	3BD7500	3BD9600
TCGW09T304 S01020-3S	9.67	9.525	3.97	0.4	2.5	6
TCGW09T308 S01020-3S	9.67	9.525	3.97	0.8	2.5	6	●	●
TCGW09T312 S01020-2S	9.67	9.525	3.97	1.2	2.5	6

Other related products:
PCD Die                             PDC Cutter                            Solid PCBN/PCD Inserts
