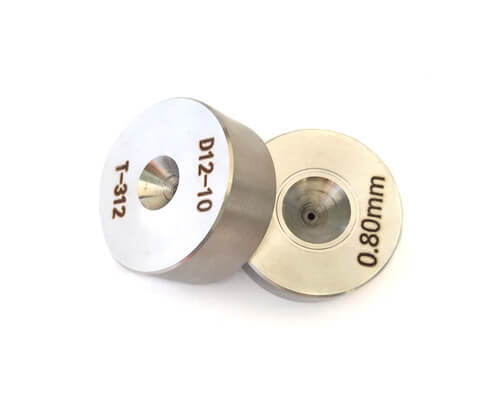

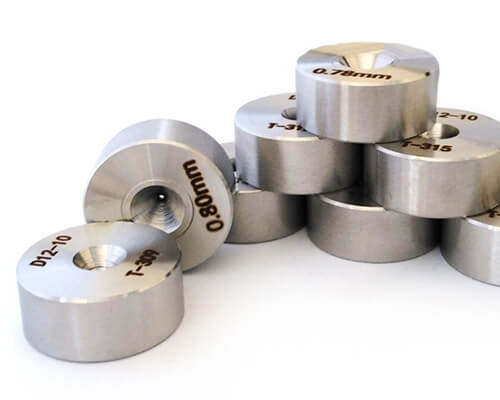

PCD wire drawing die
  • single crystal synthetic diamond wire drawing dies
  • Hot synthetic diamond dies
  • PCD Dies-Si base
  • PCD Dies- Co base

PCD wire drawing die

  • Function Wire Drawing
  • Application Iron, Steel, Silver, Gold
  • Certificate ISO9001:2000

  • Product details
  • parameter
According to different needs of customers, we can manafacture the PCD cobalt base dies,and PCD silicon base dies for your choose, aperture manufacturing range 0.04mm-35mm (larger or smaller size customized according to customer requirements)



PCD Dies-Si base

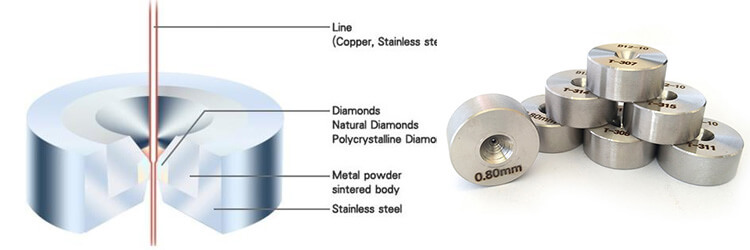

It is composed of diamond powder under the action of Metal Catalyst (silicon), which is sintered by high pressure and high temperature process.
It can ensure the roundness of the wire and has a high surface finish, drawing life is long, it is difficult to appear mold wear and flat line phenomenonin even in the long time drawing process.
Application:
For soft wire:
Wire: Gold, silver, platinum, brass, phosphorus bronze, aluminum and so on.
For hard wire:
Wire: iron wire, stainless steel wire, nickel line, chrome line, molybdenum wire, tungsten wire, copper clad steel wire and so on.
PCD Dies- Co base
With long drawing life, high finish, high mold concentric degree, accurate mold parameter control and other advantages, recommended to do medium and high requirements, quality of large, medium and small wire bridge mold, such as: cutting line, structure line, King Kong line, copper wire, aluminum wire, wire, stainless steel wire, spring line, copper wire plating and other colored or non-ferrous
TYPE DIE SIZE (mm) STANDARD TOLERANCE (um) STANDARD CASES
A B
ND DIES <0.04 0.5 25 5
0.04-0.07 0.5 25 5
0.08-0.19 1 25 8
0.2-0.39 1 25 8
0.4-0.59 1 25 10
0.60-0.10 2 25 10
>1.0 3 30 15
PCD DIES D6 0.10-0.15 25 7
D12 0.10-0.80 30 15
D15 0.50-1.50 30 15
D18 1.00-2.30 30 15
D21 1.60-3.40 30 15
D24 2.60-4.60 42 20
D27 3.00-5.80 55 24
D30 4.00-11.20 55 24
D33 6.00-12.50 60 28
D36 8.00-13.50 70 35
D 12.00-22.00 70 35
D 20.00-32.00 85 40
