CBN Grinding Wheel For Woodturning Tools

Peculiarity Compare with traditional grinding wheels, our CBN wheels have the cutting fast and high speed feed grinding, will not cause rough surface and burn problems, leaves fine finish on tool bevel and don't need any dressing,etc

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

CBN Grinding Wheel For Woodturning Tools Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

PCD saw blades

Ultra-thin PCD saw blade for cutting aluminum PCD saw blade for cutting the Panel Furniture

Product details
parameter

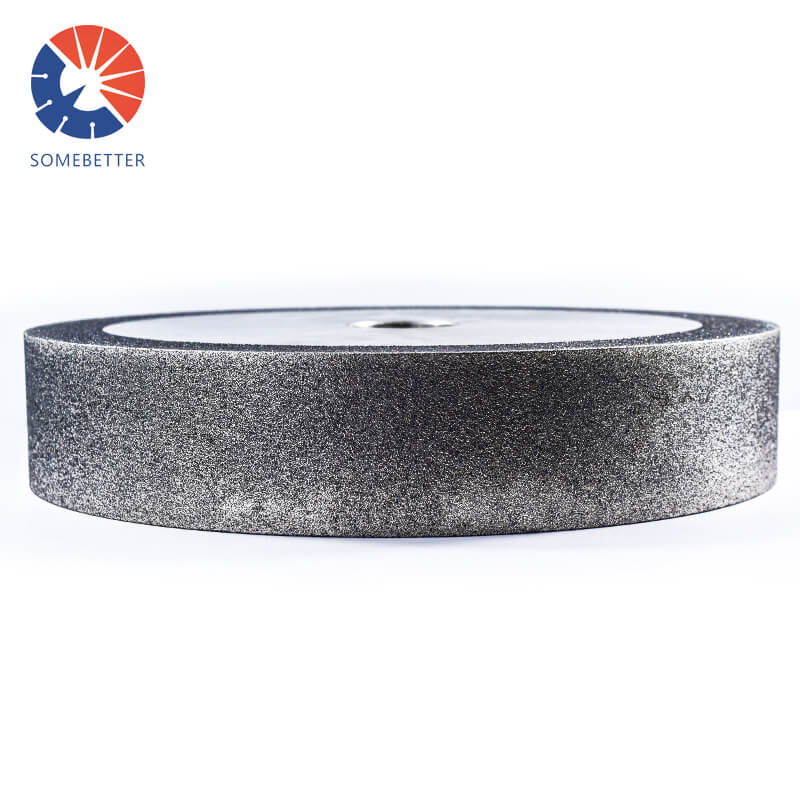

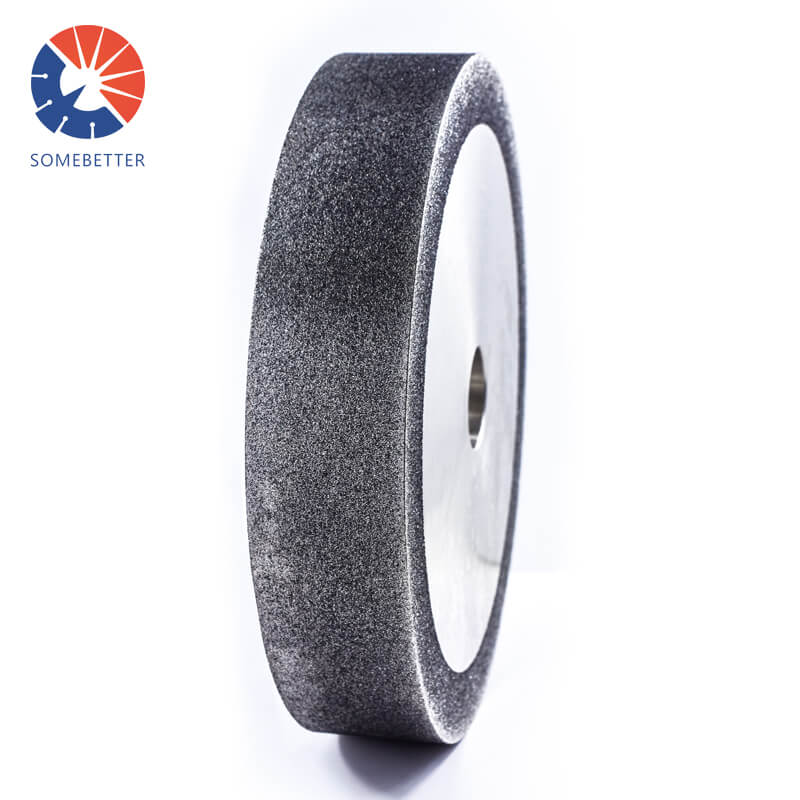

Electroplated CBN wheels are used for woodturning tools sharpening. Compare with traditional grinding wheels, our CBN wheels have the cutting fast and high speed feed grinding, will not cause rough surface and burn problems, leaves fine finish on tool bevel and don't need any dressing,etc.

Advantages:

1) Compare with traditional grinding wheels, CBN wheels have the cutting fast and will not cause rough surface and burn problems

2) Fast and cool cutting action without coolant

3) Side surface for flat grinds on skews, scraper cutters and tool bits

4) No need dressing or turning

5)Wheel stays flat, never changes shape.The thermal conductivity of CBN can reach 10 to 100 times that of corundum grinding wheel, so the grinding heat can be quickly exported and reduce the workpiece deformed.

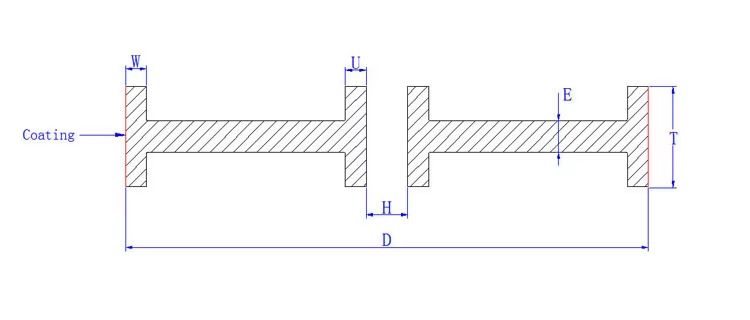

Popular sizes DxTxH	6"x1"x1/2" 150x25.4x12.7mm Grit: 60 to 1200	6"x1.5"x1/2" 150x38.1x12.7mm Grit: 60 to 1200	6"x2"x1/2" 150x50x12.7mm Grit: 60 to 1200
	8"x1"x5/8"(1") 200x25.4x15.875mm Grit: 60 to 1200	8"x1.5"x1.25" 200x40x31.75mm Grit: 60 to 1200	8"x2"x1.25" 200x50x31.75mm Grit: 60 to 1200
	10"x1"x12mm 250x25.4x12mm Grit: 60 to 1200	10"x1.5"x12mm 250x40x12mm Grit: 60 to 1200	10"x2"x12mm 250x50x12mm Grit: 60 to 1200
Typical Grinders	Bench Grinder	Drill Sharpener	Saw Sharpener
	Tormek	Darex	Vollmer
	Valmarco	GSC	Loroch
Application	Lapidary polishing and grinding	Gemstone polishing and grinding	Glass grinding and polishing
	Stone and marble grinding and polishing	Tungsten Carbide grinding and sharpening	Drill bits sharpening
	Endmill Sharpening	Saw Sharpening	Woodworking tool sharpening

Popular sizes DxTxH	6"x1"x1/2" 150x25.4x12.7mm Grit: 60 to 1200	6"x1.5"x1/2" 150x38.1x12.7mm Grit: 60 to 1200	6"x2"x1/2" 150x50x12.7mm Grit: 60 to 1200
	8"x1"x5/8"(1") 200x25.4x15.875mm Grit: 60 to 1200	8"x1.5"x1.25" 200x40x31.75mm Grit: 60 to 1200	8"x2"x1.25" 200x50x31.75mm Grit: 60 to 1200
	10"x1"x12mm 250x25.4x12mm Grit: 60 to 1200	10"x1.5"x12mm 250x40x12mm Grit: 60 to 1200	10"x2"x12mm 250x50x12mm Grit: 60 to 1200
Typical Grinders	Bench Grinder	Drill Sharpener	Saw Sharpener
	Tormek	Darex	Vollmer
	Valmarco	GSC	Loroch
Application	Lapidary polishing and grinding	Gemstone polishing and grinding	Glass grinding and polishing
	Stone and marble grinding and polishing	Tungsten Carbide grinding and sharpening	Drill bits sharpening
	Endmill Sharpening	Saw Sharpening	Woodworking tool sharpening
