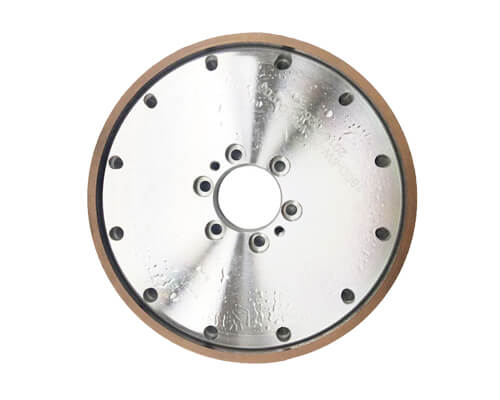

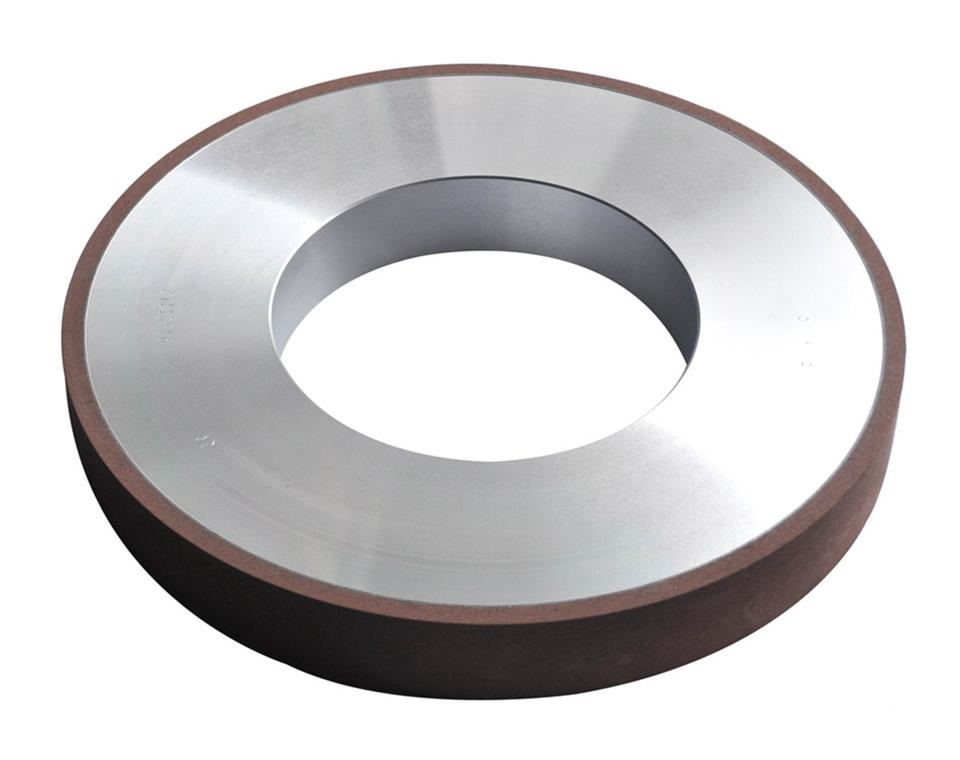

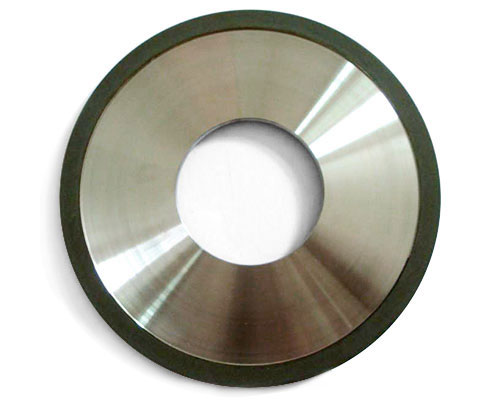

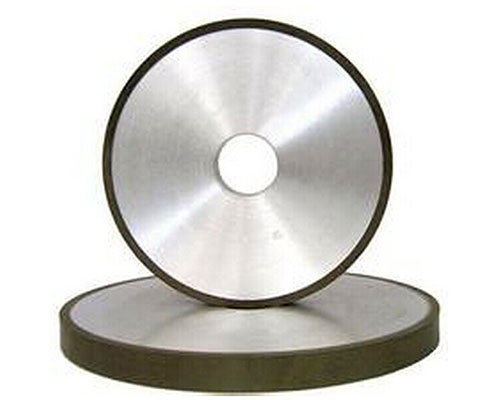

CBN Grinding Wheel

Application For grinding hard and brittle materials and hard alloy in grinding process
Certificate ISO9001:2000

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

CBN Grinding Wheel For Woodturning Tools Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

PCD saw blades

Ultra-thin PCD saw blade for cutting aluminum PCD saw blade for cutting the Panel Furniture

Product details
parameter

Application
Diamand Grinding Wheel	General Purpose	CBN Grinding Wheel
Cemented Carbide Titanium Alloys Glass Crystal Ceramics Silicon Filicon Ferrites PCD PCBN Quartz Stone Concrete Asphalt	Aluminum alloys Cast Iron Tungsten Flame -Sprayed Metals Magnetic Materials	Carbon Steels High-Speed Steels tool steel Alloy Steels Hardening Steels Die Steels Stainless Steels Bearing Steels Heat-resistant Alloys Super Heat-Resistant Alloys Sintered Metals Copper Alloys

We have produced CBN grinding wheels with various specification in excellent quality and competitive price.The
CBN grinding wheels include resin bond,vitrified bond, Metal bond, Electroplated.The features as below:

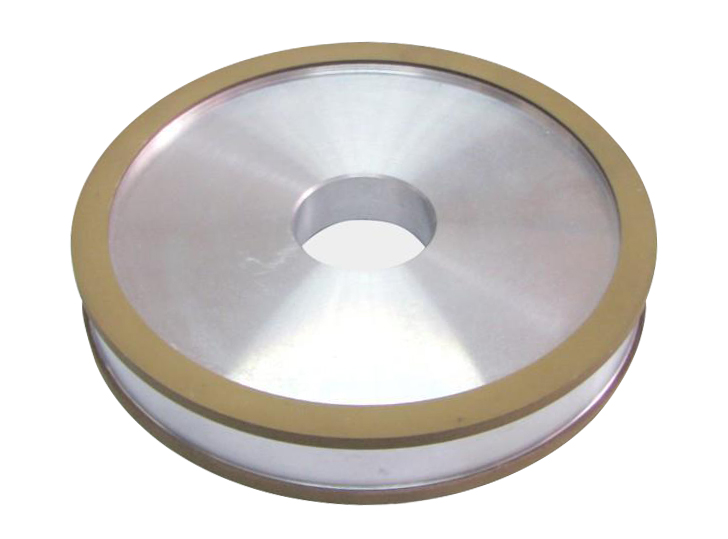

Resin bond CBN grinding wheel
Feature:
1.Good self sharpness.
2.Sharp cutting.
3.High grinding efficiency.
4.Easy to trim.
5.Great surface finish for processing workpieces.
Application: It is widely used in accurately grinding ceramic, glass, cemented carbide, hard alloy steel, etc.

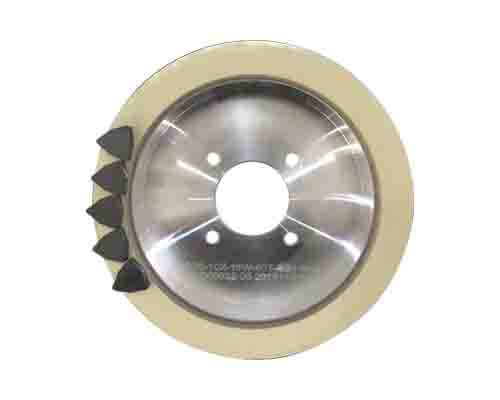

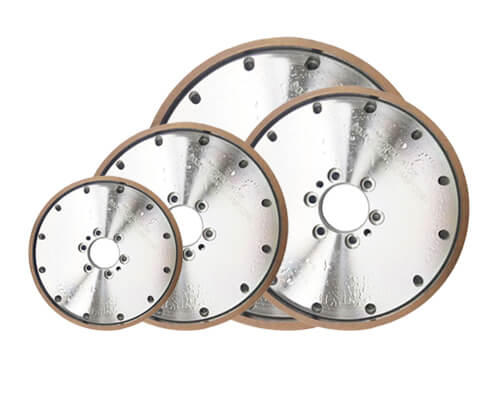

Vitrified bond CBN grinding wheel
Feature:
1.High efficiency,
2.Long life,
3.Easy shaping.
Application: It is widely used in grinding PCD, PCBN, tungsten carbide, wearable alloy steel,etc.Our products
have the unique features, especially in high precision, high finish grinding.etc

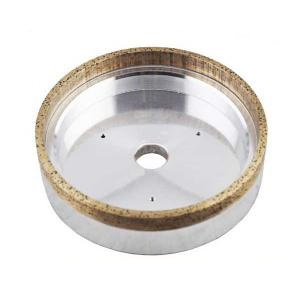

Metal bond CBN grinding wheel
Feature:
1. high grinding efficiency,
2.long service life,
3.good shape retentivity.
Application:
Suitable for the normalization of automobile glass and standardized production.etc

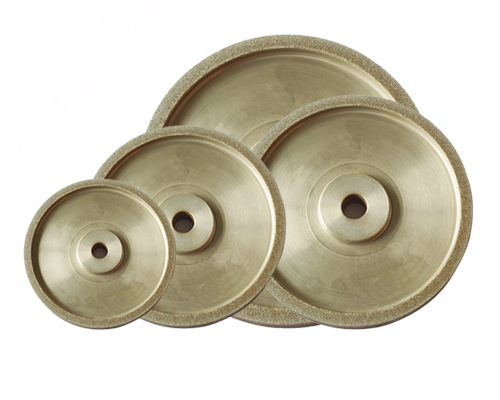

Electroplated CBN grinding wheel
Feature:
1.High processing efficiency,
2.Good wear resistance,
3.Good shape retentivity
Application:
It widely used in aerospace, automobile, hydraumatic bearings, mould, magnetic material, glass and other
industries.etc

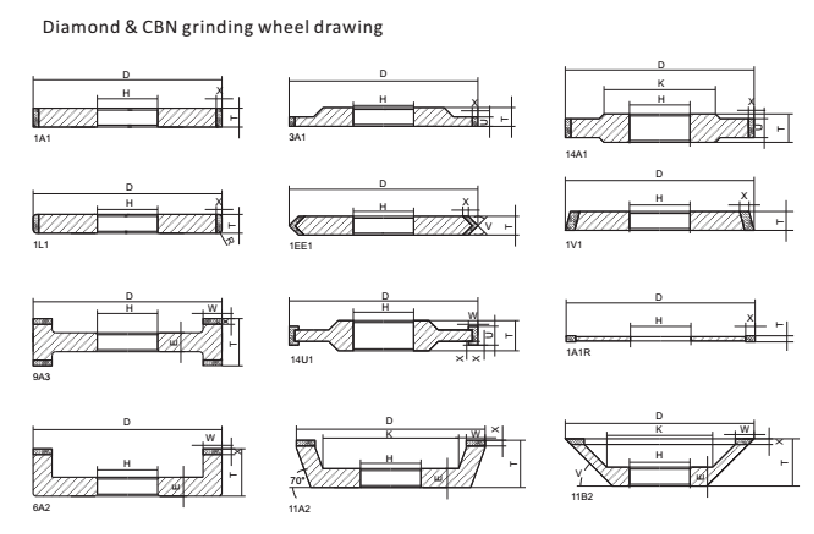

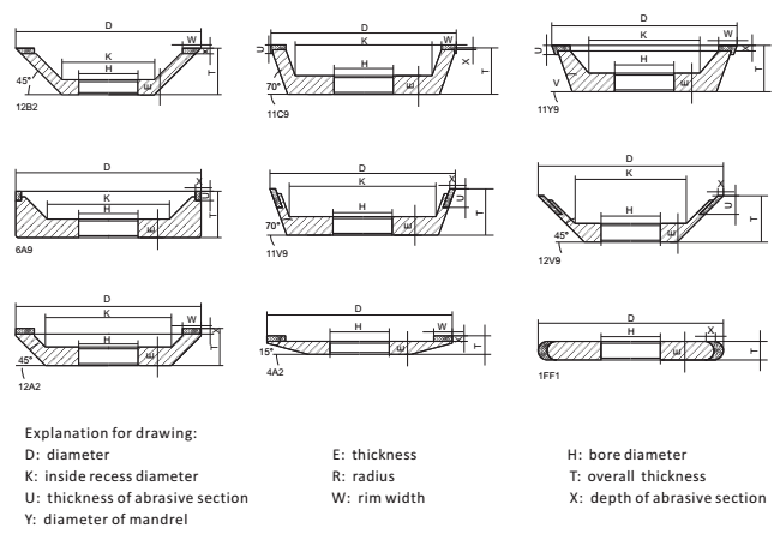

Parameter:

D	T	X	H	Con	Grits Size
mm	mm	mm	mm	%	D151 D126 D107 D91 D76 D64 D54 D46
50	0.8-20	3-20	16-25.4	50%-150%
75	0.8-20	3-20	22.23-25.4	50%-150%
100	3- 12	10-20	22.23-25.4	50%-150%
125	3-15	10-20	22.23-25.4	50%-150%
150	3-20	10-25	22.23-25.4	50%-150%
175	6-20	10-25	22.23-25.4	50%-150%
200	23-20	10-25	22.23-25.4	50%-150%
250	6-25	10-30	22.23-25.4	50%-150%
300	6-25	10-30	22.23-25.4	50%-150%
350	10-25	10-30	22.23-25.4	50%-150%
400	6-30	20-35	22.23-25.4	50%-150%
450	6-30	20-25	22.23-25.4	50%-150%
500	10-30	20-35	22.23-25.4	50%-150%
600	20-30	25-35	22.23-52.0	50%-150%
other size are upon requirement

Other related products:
Diamond Grinding Wheel Electroplated Diamond Blade Diamond Segments

D	T	X	H	Con	Grits Size
mm	mm	mm	mm	%	D151 D126 D107 D91 D76 D64 D54 D46
50	0.8-20	3-20	16-25.4	50%-150%
75	0.8-20	3-20	22.23-25.4	50%-150%
100	3- 12	10-20	22.23-25.4	50%-150%
125	3-15	10-20	22.23-25.4	50%-150%
150	3-20	10-25	22.23-25.4	50%-150%
175	6-20	10-25	22.23-25.4	50%-150%
200	23-20	10-25	22.23-25.4	50%-150%
250	6-25	10-30	22.23-25.4	50%-150%
300	6-25	10-30	22.23-25.4	50%-150%
350	10-25	10-30	22.23-25.4	50%-150%
400	6-30	20-35	22.23-25.4	50%-150%
450	6-30	20-25	22.23-25.4	50%-150%
500	10-30	20-35	22.23-25.4	50%-150%
600	20-30	25-35	22.23-52.0	50%-150%
other size are upon requirement
