YOUR POSITION : Home > Diamond tools > Diamond/CBN grinding wheel
1）high efficiency；
2）abrasion resistance, high consumption
3）Small grinding force, grinding temperature is low
4) high accuracy and good surface quality of workpiece, the shape of the workpiece stability is good
5）with more pores, grinding is good for chip removal and cooling, not easy to jam, not easy to burn the workpiece
6）easy sharping
Application:

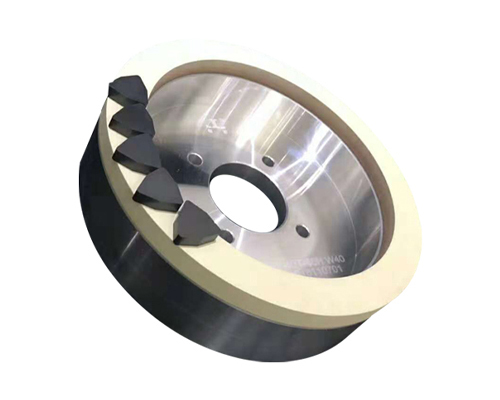

Widely used for grinding PCD tools, PCBN tools, polycrystalline diamond, diamond knife, PDC cutter, gem knife, tungsten steel, carbide, ceramics, glass, etc. The grinding wheel combines the performance and high hardness of the ceramic together,to make the process with greater strength and stronger grinding force.
.png)
| D | T | X | H | Con | Grits Size |
| mm | mm | mm | mm | % | D151 D126 D107 D91 D76 D64 D54 D46 |
| 50 | 0.8-20 | 3-20 | 16-25.4 | 50%-150% | |
| 75 | 0.8-20 | 3-20 | 22.23-25.4 | 50%-150% | |
| 100 | 3- 12 | 10-20 | 22.23-25.4 | 50%-150% | |
| 125 | 3-15 | 10-20 | 22.23-25.4 | 50%-150% | |
| 150 | 3-20 | 10-25 | 22.23-25.4 | 50%-150% | |
| 175 | 6-20 | 10-25 | 22.23-25.4 | 50%-150% | |
| 200 | 23-20 | 10-25 | 22.23-25.4 | 50%-150% | |
| 250 | 6-25 | 10-30 | 22.23-25.4 | 50%-150% | |
| 300 | 6-25 | 10-30 | 22.23-25.4 | 50%-150% | |
| 350 | 10-25 | 10-30 | 22.23-25.4 | 50%-150% | |
| 400 | 6-30 | 20-35 | 22.23-25.4 | 50%-150% | |
| 450 | 6-30 | 20-25 | 22.23-25.4 | 50%-150% | |
| 500 | 10-30 | 20-35 | 22.23-25.4 | 50%-150% | |
| 600 | 20-30 | 25-35 | 22.23-52.0 | 50%-150% | |
| other size are upon requirement | |||||
