  • Granit segmented diamond blade
  • Granit segmented diamond blade
  • Granit segmented diamond blade
  • Granit segmented diamond blade

Granite Cutting Disc

  • Usage granit
  • Size 300~2700mm
  • Certificate Key slot, narrow slot, U slot, Custom-Made Narrow slot
  • Matrix 56MN

Diamond Tools

Diamond blade
Diamond segment
Diamond/CBN grinding wheel
Polycrystalline diamond compact (PDC cutter)
Diamond grinding tools
Diamond polishing pads
Diamond Core Drill Bits
Diamond Wire Saw Rope
PCD saw blades
  • Product details
  • parameter

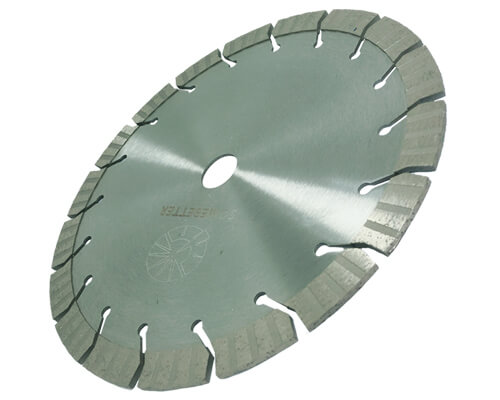

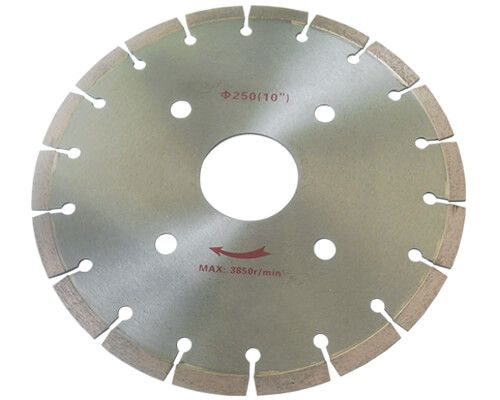

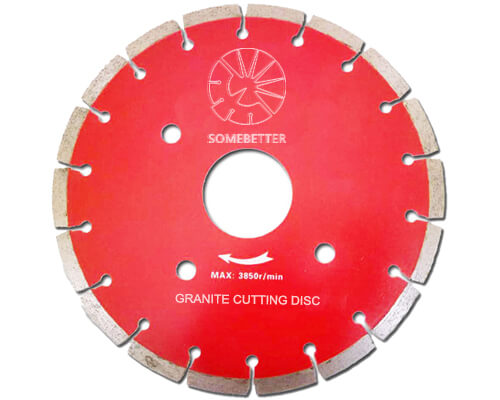

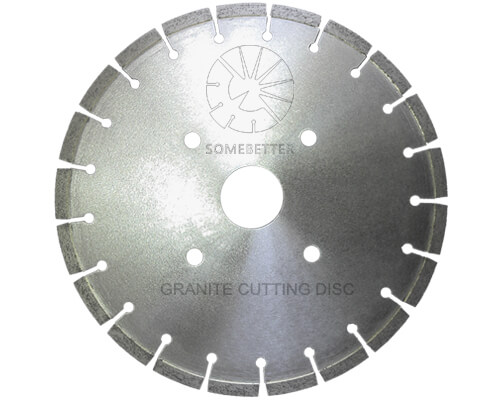

Diamond Granite cutting Saw Blade
It is designed for diamond cutting disc, granite cutting tools.

•can customize the saw blade for 300~2700mm diameters cutting machine.
•30 mm - 100 mm arbor for choice;
•Grade A diamond crystals for high sawing performance
•10~20mm height segments for aggressive cutting and extended tool life
•Laser welding or silver welding are for option
•Wet use only

This will guarantee an excellent cutting speed for the entire life of the blade.


Product Name Saw blade Diameter(mm) Segment Dimension(mm) Segment Number(pcs) Shape

SOMEBETTER
Diamond Segment for Granite		 300 40x3.2x10(15,20) 21 Normal or according
to customer's requirement
350 40x3.2x10(15,20) 24
400 40x3.6x10(15,20) 28
450 40x4.0x10(15,20) 32
400 40x3.6x10(15,20) 28
450 40x4.0x10(15,20) 32
500 40x4.0x10(15,20) 36
550 40x4.6x10(15,20) 40
600 40x4.6x10(15,20) 42
650 40x5.0x10(15,20) 46
700 40x5.0x10(15,20) 50
750 40x5.0x10(15,20) 54
800 40x5.5x10(15,20) 57
850 40x5.5x10(15,20) 58
900 24x7.5x13(15) 64
1000 24x7.5x13(15) 70
1200 24x8.0x13(15) 80
1400 24x8.5x13(15) 92
1600 24x9.5x13(15) 108
1800 24x10x13(15) 120
2000 24x11x13(15) 128
2200 24x11x13(15) 132
2500 24x12.5x13(15) 140
2700 24x12.5x13(15) 140

Other related products:

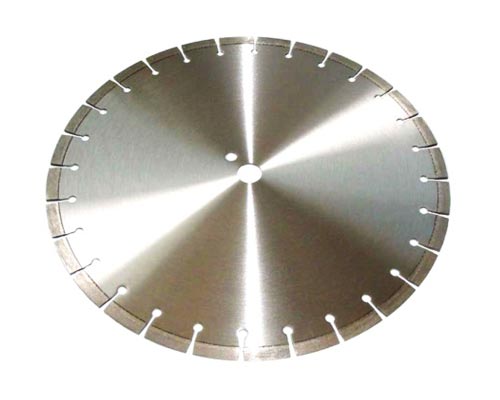

Laser welding diamond blade               Sintered diamond blade                Sliver welding diamond blade
Product Name Saw blade Diameter(mm) Segment Dimension(mm) Segment Number(pcs) Shape

SOMEBETTER
Diamond Segment for Granite		 300 40x3.2x10(15,20) 21 Normal or according
to customer's requirement
350 40x3.2x10(15,20) 24
400 40x3.6x10(15,20) 28
450 40x4.0x10(15,20) 32
400 40x3.6x10(15,20) 28
450 40x4.0x10(15,20) 32
500 40x4.0x10(15,20) 36
550 40x4.6x10(15,20) 40
600 40x4.6x10(15,20) 42
650 40x5.0x10(15,20) 46
700 40x5.0x10(15,20) 50
750 40x5.0x10(15,20) 54
800 40x5.5x10(15,20) 57
850 40x5.5x10(15,20) 58
900 24x7.5x13(15) 64
1000 24x7.5x13(15) 70
1200 24x8.0x13(15) 80
1400 24x8.5x13(15) 92
1600 24x9.5x13(15) 108
1800 24x10x13(15) 120
2000 24x11x13(15) 128
2200 24x11x13(15) 132
2500 24x12.5x13(15) 140
2700 24x12.5x13(15) 140
