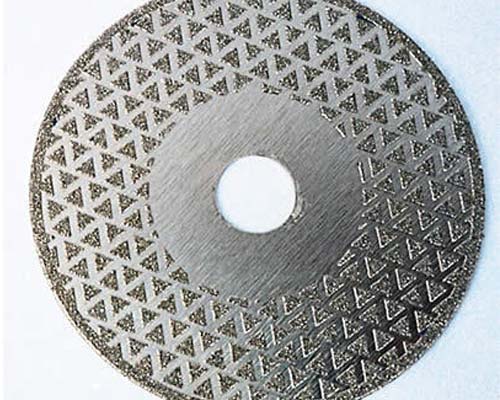

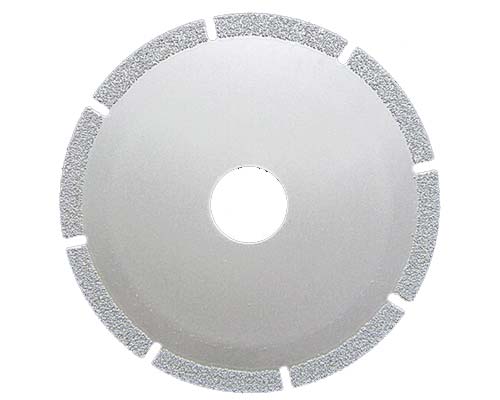

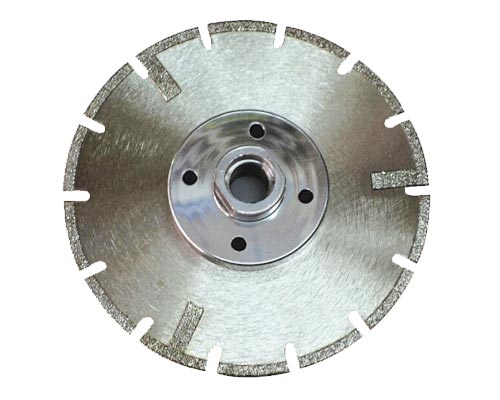

Diamond segment powder is electroplated on the matrix to be electroplated diamond saw blade. Electroplated productive technology is sharper, more wear proof and produces less waste materials compared with sintered diamond saw blades.
Electroplated Diamond Saw Blade Feature:
High processing speed, but life is shorter.
Application:
Electroplated diamond blade mainly used for many kinds of materials such as marble, ceramics, PVC plastic, fiber glass, etc.
Machinery:
Hand held saw, circular saw, high speed power saw, Angle grinder, Walk behind saw low hp, Flat saw, Tile saw, Masonry saw, Stone Saw.

Parameter:

Outer Diameter		Arbor Size		Segment Dimension	Segment Number
Inches	Metric (mm)	Inches	Metric (mm)
4"	105	7/8"	22.23	32*2.0*8/10	8
4.5"	115	7/8"	22.23	32*2.0*8/10	9
5"	125	7/8"	22.23	32*2.2*8/10	10
6"	150	7/8"	22.23	32*2.2*8/10	12
7"	180	7/8"	22.23	32*2.4*8/10	13
8"	200	7/8"	22.23	32*2.4*8/10	13
9"	230	7/8"	22.23	32*2.6*8/10	16
10"	250	7/8"	22.23	32*2.6*8/10	18
12"	300	1"	25.4	32*3.0*8/10	20
14"	350	1"	25.4	32*3.2*8/10	24
16"	400	1"	25.4	32*3.4*8/10	28
18"	450	1"	25.4	32*3.6*8/10	32
20"	500	1"	25.4	32*3.6*8/10	35
24"	600	1"	25.4	32*4.2*8/11	42

                                                    Other Sizes are upon requirements
